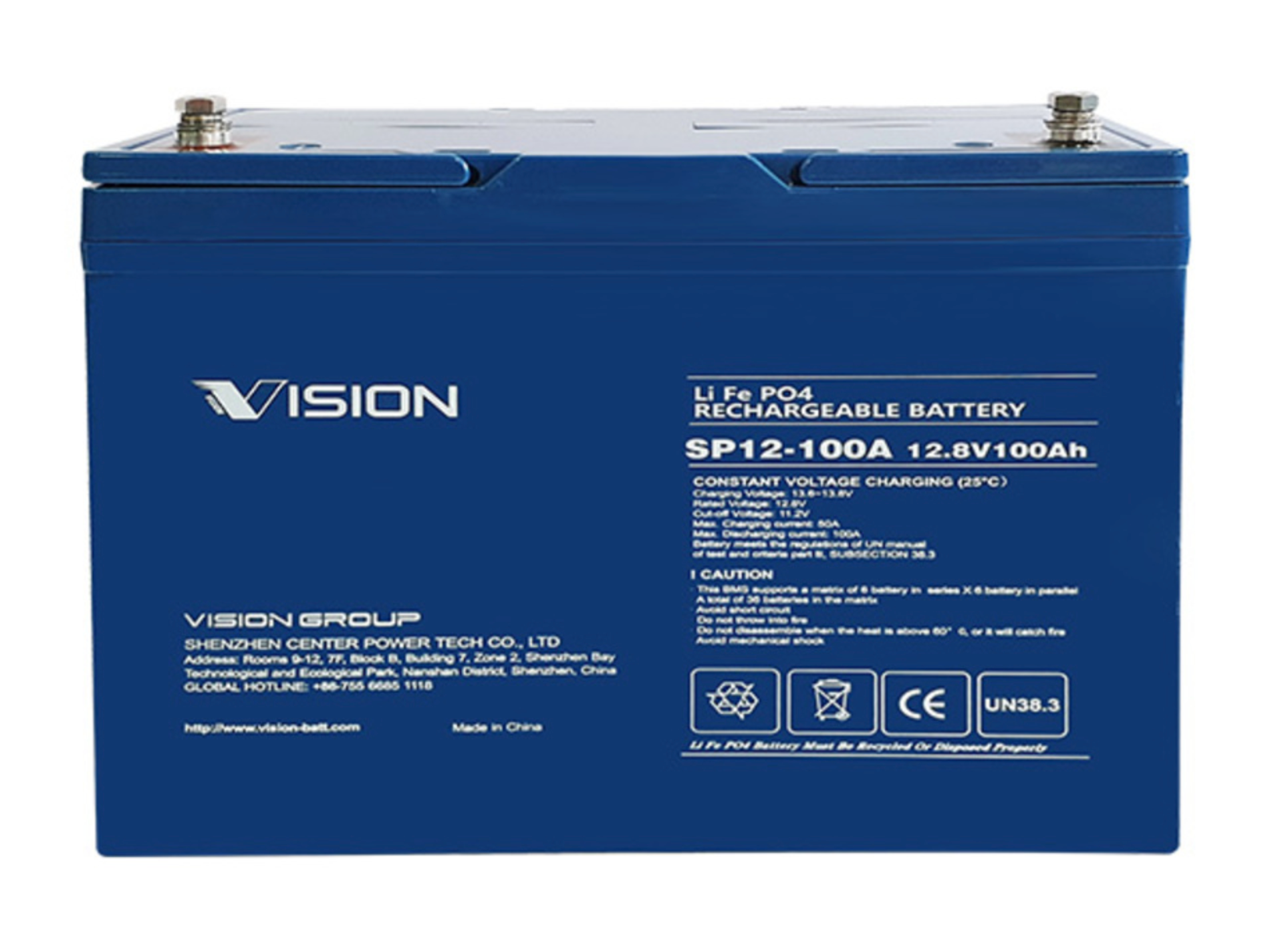

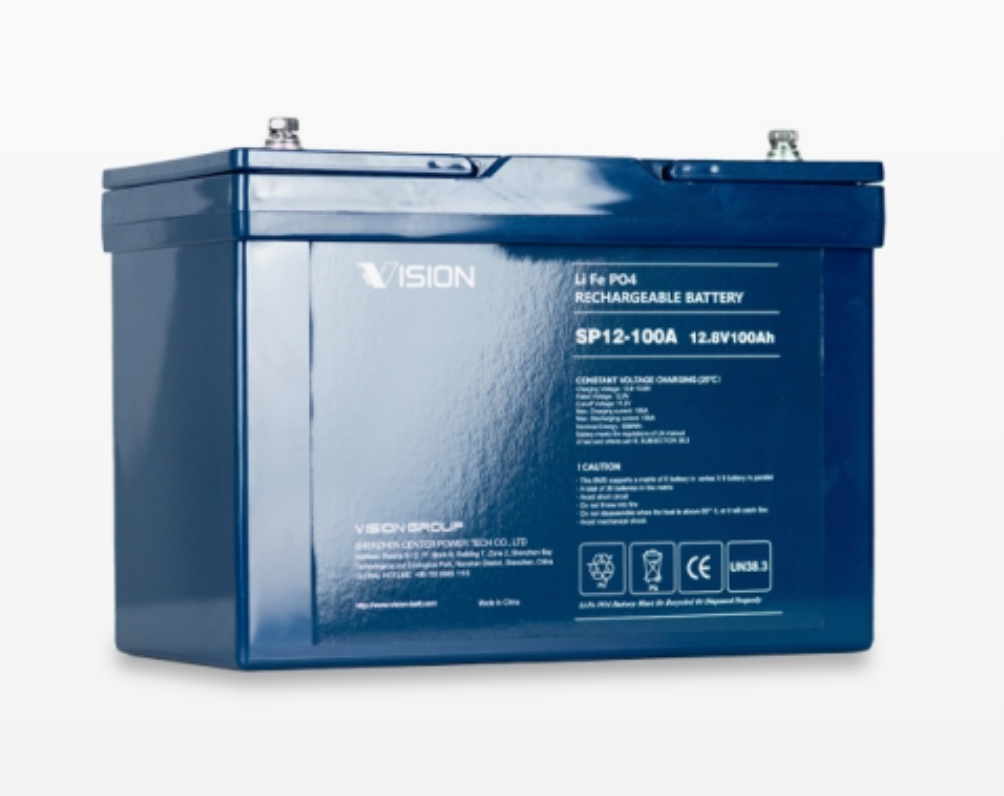

12.8V 100Ah Lithium LiFePO4 battery

LiFePO4 100Ah Lithium Deep Cycle battery

These LiFePO4 batteries are half the weight of AGM, GEL & Wet Flooded batteries.

With greater depth of discharge, power density and lighter weight than lead acid, it’s no wonder that these batteries are becoming the first port of call to those with space constraints.

The Vision LFP lithium battery range have extra strong cases that are fully sealed and maintenance free, concealing safer technology along with the added benefit of an easier recharge thanks to their superior recharge absorption.

Easy to parallel and add to a series and even easier to retrofit into applications with solar charge controllers, these batteries are simply all-rounders that will just keep on cranking.

SPECIFICATIONS
Voltage: 12.8V
Amp Hour: 18
Chemistry: LiFePO4  A-Grade Prismatic cells
Length: 330mm
Width: 173mm
Height: 220mm
Weight: 11kg

End of charge Voltage: 14.4V
End of discharge Voltage: 9.2V
Nominal Discharge Current: 100A
Standard Recharge Current: up to 100A

Service Life: 10yrs+
Cycle Life: 2000 cycles (> 80% capacity retention)

Output Terminals: M8 Bolt Down
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%
