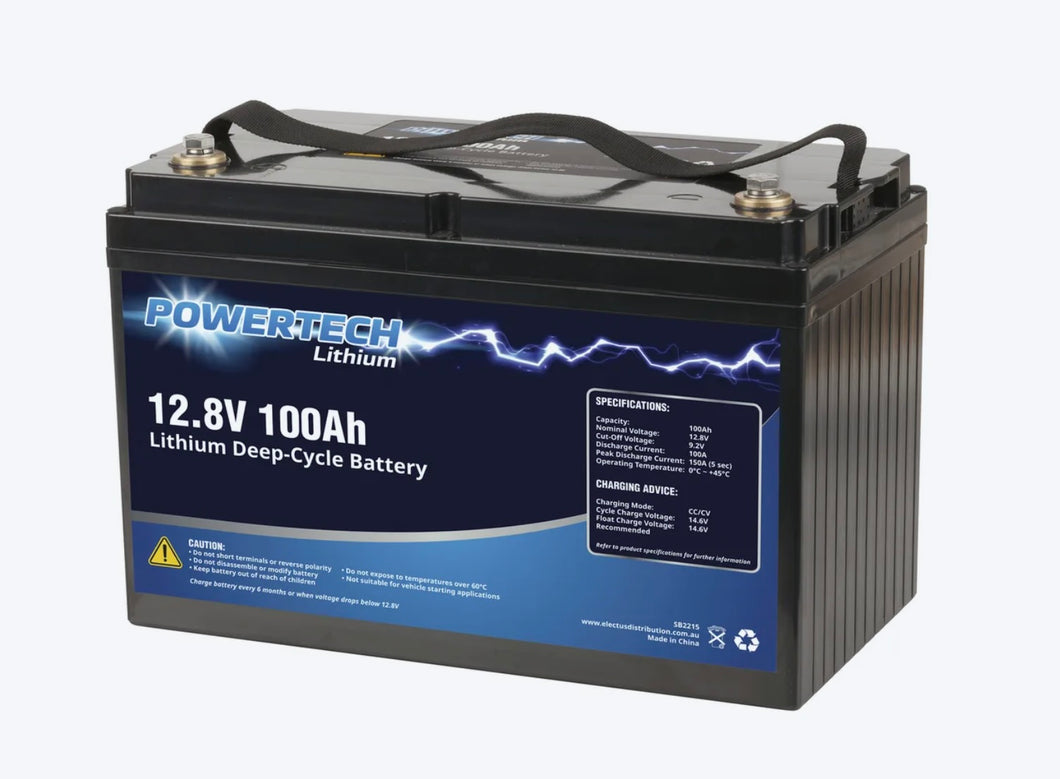

Powertech 12.8V 100Ah Lithium LiFePO4 battery

LiFePO4 100Ah Lithium Deep Cycle battery

These LiFePO4 batteries are half the weight of AGM, GEL & Wet Flooded batteries.

These LiFePO4 deep cycle batteries are made up of prismatic LiFePO4 cells, which are in mass production for many portable devices. An internal battery management system (BMS) ensures all cells are uniformly charged and discharged, as well as providing short circuit, over current, and reverse polarity protection. The internal BMS will also limit discharge and manage cut-off voltage, to further protect the internal cells.

SPECIFICATIONS
Voltage: 12.8V
Amp Hour: 18
Chemistry: LiFePO4  A-Grade Prismatic cells
Length: 330mm
Width: 173mm
Height: 220mm
Weight: 12kg

End of charge Voltage: 14.4V
End of discharge Voltage: 9.2V
Nominal Discharge Current: 100A
Standard Recharge Current: up to 100A

Service Life: 10yrs+
Cycle Life: 2000 cycles (> 80% capacity retention)

Output Terminals: M8 Bolt Down
Operating Temperature: 0-45°C (60°C max discharging)
Operating Humidity: RH < 85%
Storage Temperature: 0-40°C (15-25°C recommended)
Storage Humidity: RH < 50%
