SECURITY CCTV DVR & CAMERA PACKAGE
Concord 4 Channel HD DVR Package - 4 x 1080p Cameras
FEATURES
- High Definition Surveillance System
- 4 Weatherproof 1080p Bullet Cameras
- 1TB Internal Storage
- PIR Motion Detection
Protect your property with this easy to install surveillance system. The kit includes four weatherproof HD cameras to capture vision in high definition features built-in infrared LEDs for night vision up to 15m and Thermal Detect Technology to help prevent false triggers.
The DVR includes a built-in 1TB HDD and supports FTP storage or Dropbox™ Cloud Storage to safeguard your data and push notifications to send alerts to your phone.
Watch live or playback video on your HDTV or LCD monitor via HDMI or VGA or log in remotely via your Apple or Anroid compatible Smartphone or Tablet using the free app.
Connecting your Smartphone is made easy using Peer-to-Peer (P2P) technology and scanning a QR code with the app.
Connecting your Smartphone is made easy using Peer-to-Peer (P2P) technology and scanning a QR code with the app.
A USB mouse is included to navigate the on-screen menus, and there is a second USB 2.0 port that allows you to save recordings to a USB thumb drive for sharing or viewing on other devices, as well as uploading firmware updates.
SPECIFICATIONS
Equipment Type : Surveillance Package (DVR + Camera)
IP Rating : IP66
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 6 - Powerful water jets
IP rating for : Camera
Storage Media Type : 3.5" SATA HDD
Included Capacity : 1.0TB
Maximum Capacity : 6.0TB
Expandable : true
External port type : RJ45
External port standard : 10/100Mbps
LAN Standard : 100BASE-T (10/100Mbps)
LAN Port Type : RJ45
Software version : Linux (embedded)
Compatible with current versions of Microsoft Windows : true
Compatible with current versions of Apple macOS : true
Dimensions for : Recorder
Length : 215.0mm
Width : 230.0mm
Height : 45.0mm
PSU Powers : Receiver
DC Plugpack Voltage : 12.0V
DC Current Draw : 2.0A
PSU Powers : Camera
DC Plugpack Voltage : 12.0V
DC Current Draw : 250.0mA
Video Format (Analogue Input) : Composite Video (CVBS)
Recording Resolution (Analogue Input) : 1080p (1920 x 1080)
Frame Rate (Maximum per Channel) : 30.0fps
Recording Format : H.264 (MPEG4), H.265 (MPEG4)
Supported USB Standards : USB 2.0
USB Interface Functions : Mouse, Backup, Upgrade
Number of USB ports : 2.0 ports
Supported Display Resolution : 1080p (1920 x 1080)
Resolution Frequency : 30.0Hz
Type of Camera : Bullet
Output Signal : AHD
Resolution : 1080p (1920 x 1080)
Video Output Connection : BNC
Included Lead Length : 18.0m
Lens Diameter : 3.6mm
Lens Angle : 87.0°
Sensor Size : 1/2.8 Inch
Sensor Type : CMOS
Frame Rate : 25.0fps
Infrared Enabled : true
Infrared Range : 15.0m
Thermal Detection PIR Sensor : true
Thermal Detection Range : 10.0m
Video Channels (Direct Connection) : 4.0ch
Total Recording Channels : 4.0ch
Camera Connection : BNC
Video Output (Monitor) : HDMI Type-A, D15 HD (VGA)
Audio Inputs : 4.0ch
Audio Outputs : 1.0ch
Audio Connection : RCA
Maximum Recording Time : 365.0d
Max Recording Time Details : When using thermal detection
Motion Sensing : true
Recording Schedule Functions : Continuous Record, Motion Activation
PTZ Control : RS485 Serial
Remote Access : Android(R) App, iPhone(R) App
Backup Methods : USB
Cameras Included : 4.0pc
Cables Included : 4.0pc
Cable Length : 18.0m
Dimension for : Camera
Dimensions details : Height includes bracket
Length : 140.0mm
Width : 70.0mm
Height : 70.0mm
Cable length : 18.0m
Apps to suit : Apple iOS, Android
IP Rating : IP66
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 6 - Powerful water jets
IP rating for : Camera
Storage Media Type : 3.5" SATA HDD
Included Capacity : 1.0TB
Maximum Capacity : 6.0TB
Expandable : true
External port type : RJ45
External port standard : 10/100Mbps
LAN Standard : 100BASE-T (10/100Mbps)
LAN Port Type : RJ45
Software version : Linux (embedded)
Compatible with current versions of Microsoft Windows : true
Compatible with current versions of Apple macOS : true
Dimensions for : Recorder
Length : 215.0mm
Width : 230.0mm
Height : 45.0mm
PSU Powers : Receiver
DC Plugpack Voltage : 12.0V
DC Current Draw : 2.0A
PSU Powers : Camera
DC Plugpack Voltage : 12.0V
DC Current Draw : 250.0mA
Video Format (Analogue Input) : Composite Video (CVBS)
Recording Resolution (Analogue Input) : 1080p (1920 x 1080)
Frame Rate (Maximum per Channel) : 30.0fps
Recording Format : H.264 (MPEG4), H.265 (MPEG4)
Supported USB Standards : USB 2.0
USB Interface Functions : Mouse, Backup, Upgrade
Number of USB ports : 2.0 ports
Supported Display Resolution : 1080p (1920 x 1080)
Resolution Frequency : 30.0Hz
Type of Camera : Bullet
Output Signal : AHD
Resolution : 1080p (1920 x 1080)
Video Output Connection : BNC
Included Lead Length : 18.0m
Lens Diameter : 3.6mm
Lens Angle : 87.0°
Sensor Size : 1/2.8 Inch
Sensor Type : CMOS
Frame Rate : 25.0fps
Infrared Enabled : true
Infrared Range : 15.0m
Thermal Detection PIR Sensor : true
Thermal Detection Range : 10.0m
Video Channels (Direct Connection) : 4.0ch
Total Recording Channels : 4.0ch
Camera Connection : BNC
Video Output (Monitor) : HDMI Type-A, D15 HD (VGA)
Audio Inputs : 4.0ch
Audio Outputs : 1.0ch
Audio Connection : RCA
Maximum Recording Time : 365.0d
Max Recording Time Details : When using thermal detection
Motion Sensing : true
Recording Schedule Functions : Continuous Record, Motion Activation
PTZ Control : RS485 Serial
Remote Access : Android(R) App, iPhone(R) App
Backup Methods : USB
Cameras Included : 4.0pc
Cables Included : 4.0pc
Cable Length : 18.0m
Dimension for : Camera
Dimensions details : Height includes bracket
Length : 140.0mm
Width : 70.0mm
Height : 70.0mm
Cable length : 18.0m
Apps to suit : Apple iOS, Android

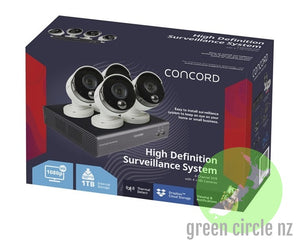

BOX CONTENTS
1 x 4 Channel Digital Video Recorder
4 x 1080p PIR AHD Bullet Cameras
4 x 18m Power and Video Cables
Mains Power Cable, Adaptor, and Splitter
USB Mouse
1m HDMI Cable
1m Network Cable
4 x 1080p PIR AHD Bullet Cameras
4 x 18m Power and Video Cables
Mains Power Cable, Adaptor, and Splitter
USB Mouse
1m HDMI Cable
1m Network Cable
CDK4242P-A
